Guide To Upgrade or Flash Bootloop Sony Xperia Z5 Compact Using XperiFirm And Flashtool.

Flash Sony Xperia Z5 Compact Using Flahtool. Sony Xperia Z5 Compact released on 2015, October, This device comes with 4,6 Inches IPS capacitive touchscreen, 16M colors LCD , Run on Android OS, v5.1.1 (Lollipop), upgradable to v6.0 (Marshmallow), and supported with Qualcomm MSM8994 Snapdragon 810, Quad-core 1.5 GHz Cortex-A53 & Quad-core 2.0 GHz Cortex-A57 CPU, GPU Adreno 430, combined with 2 GB of RAM as their engine. And you can enjoy exciting 23 MP on main camera, and 5,1 MP on secondary camera to capture your best moments on your life. Sony Xperia Z5 Compact has this variant suzuran, SO-02H, E5823, E5803.

Actually you can get all latest update of All Sony Xperia series to upgrade your firmware, If your Android devices is using older android version like Android 4.0 Kitkat, and your devices is supported for upgrade you will be automatically get notification directly to your devices. But it is depending on some region and country where you live. But if you want to upgrade manually to your device, you can use this method.

Flash Bootloop Sony Xperia Z5 Compact

First Step Before Attempting Flash Sony Xperia.

Because we use this method to flash your Sony Xperia device, it will take a big risk to your device from fail, damage or wrong. So, to minimize our flashing process from any fail and something bad during flash or install firmware process, please read first guide before attempting flash or install Sony Xperia devices.

Backup all important stored data in internal memory. (video, document, music, etc) because flashing process will erase all data that stored in this devices.
It is very recommended that you create a backup of your original firmware, just in case you need to get back for repair your device if something goes wrong.
Make sure you have enough battery capacity in your device, itâ€™s recommended you have 80% of battery capacity
Download and Install drivers for your Xperia devices, You need to ensure that your computer has all of the necessary drivers installed for your Sony Xperia Z5 Compact .
For The best way to do this is to install PC Companion.
Make sure you connect your Xperia devices to the co mputer before starting the process to download the necessary USB and ADB drivers.
If you have any problems you will find the necessary drivers (once you have installed Flashtool ) in the following folder location: â€˜C: Flashtool driversâ€™.

Download Sony Xperia Firmware Automatically Using Xperifirm.

The next step you should do is download a new firmware in accordance with your Sony Xperia model and version, You can follow my special guide to do this here.

Using Flashtool To Upgrade / Flash Xperia Firmware.

This guide is show to you how to using flash tool step by step to flash or install firmware to your Sony Xperia Z5 Compact devices. Follow this guide carefully to get the perfect result .

Fisrt step you must do wnload and install the latest flash tool from here.
When finished download, now you must install this flash tool on your PC.
If you using windows 8 or windows 8.1 you must follow additional guide to insall flash tool

Click Start > Run
On the dialogue box appear you can type : shutdown.exe /r/o/f/t00
Now make the following selections to boot into the Start Up Setting screen : troubleshoot > Advances options > Start Up settings > restart.
When your windows 8/8.1 restart, select number 7 i.e . â€œDisable driver signature enforcementâ€
Now your windows 8/8.1 will start with Disable driver signature enforcement disabled until the next reboot.
Ok, flashtool driver now can be installed here
And windows 8/8.1 will warn that the driver is not signed and will require you to confirm the installation
Once your flasht ool complete installed, you must reboot or restart your windows 8/8.1

After you finished installed flashtool, now launch this program window, and if flashtool successfully opened you should see windows like picture shown below.
Then navigate to tools > bundles > create.
flash tool sony xperia
Now you must choose the folder where you save your firmware files, you can click the button show on picture below.
flash tool sony xperia bundler
Then click OK (this im age below is for an example, this use D2302)
firmware sony xperia - flashtool xperia
On picture show phone model (for an example is D2302). And the bundler now include all of the Sony Xperia Z5 Compact firmware files.
phone model - flashtool xperia
Now, you must select your device by double click on device form to get list of device
device selector - flashtool xperia
For this guide We use Sony Xperia Z5 Compact, with ID E58xx.
device selector - flashtool xperia
Now, you can double click again on name of your device to select variant on variant selector.
variant selector - flashtool xperia
Now you must input branding and firmware version number into the appropriate form.
If you want know what is your firmware version and branding, you can check this detail on the actual firmware you downloaded before.This picture is an example for Sony Xperia M2, If you use another version may be different.
xperia firmware file name - flashtool

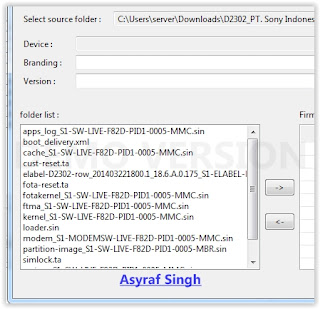

Highligt all file listed on folder list (use ctrl + click), and move to the right of windows. Then click create button. This picture is an example for Sony Xperia M2, If you use another version may be different
highlight firmware file - flashtool sony xperia
And now wait the process. Flashtool will start creating FTF firmware file, a progress bar will shown at below.
creating FTF firmware file - flashtool sony xperia
When your FTF firmware file nhas been complied, you will see the message, bundle creation finished.
bundle creati on finished - flashtool sony xperia
Make sure your FTF firmware file has been created, to check it you can go to your folder location on your computer.

C;usersyour PC name.flashtoolfirmware

And you should see folder like this.
FTF firmware - flashtool xperia
To start flash your Sony Xperia Z5 Compact device, click the lightning bolt in the top left of flashtool windows.
start flash sony xperia device
Select flashmode on the bootmode chooser, then click OK.
bootmode chooser flashtool xperia
Now select the firmware build version that you want to flash from the fiirmware pane windows. Then click flash button on left bottom. This picture below is an example for Sony Xperia M2, If you use another version may be different.
firmware selector flashtool sony xperia
And you will see this message on flashtool, preparing files for flashing.
preparing files for flashing - flashtool sony xperia
It will take around 60 seconds for the pop-up window appear. And now its time for you to connect your Sony Xperia Z5 Compact device.
wait for flashmode - flashtool sony xperia
Make sure your Sony Xperia Z5 Compact devices is power off.
Then, Hold the "Volume down" button whilst connecting USB cable.
Once the Pop Up windows disappears and flashing process has started, now you can release the volume down button.
For an older sony xperia device, re place voleme down with back button (xperia ray)
When the flashing process is finished, you can see message on flashtool
